Eaton Model 73 Cast Iron Basket Strainers

Pump Suction Simplex Basket Strainers

Eaton model 73 cast iron simplex strainer

Model 73 simplex strainers are for large pipelines (10" through 18") and popular as pump suction strainers due to their straight flow design which contributes to a smooth, laminar flow and low pressure drop across the strainer.  As illustrated below, fluid enters through the side of the strainer basket into a half-circle shaped area.  The convoluted accordian-like design increases the gross filtration surface area.

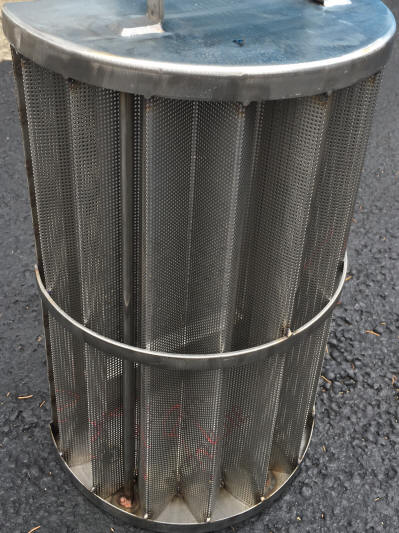

Entry side of Eaton model 73 strainer basket Exit side of Eaton model 73 strainer basket



If you do not require customizations and an ASME code stamp characteristic of our custom fabricated Eaton model 90 simplex strainers, the Eaton model 73 is an excellent choice.  Often overlooked, another benefit of the side entry basket design is it's lighter and physically smaller design, which ergonomically ideal and much easier to remove than the basket designed used for model 90's and smaller pipelines.



The compact size of the model 73 simplex strainer and cast design contributes to short lead times and inexpensive cost.  A quick call (908.362.9981) or email is all it takes for confirmation of pricing and lead time.



Features



Options



Eaton model 73 strainer specifications and drawings
